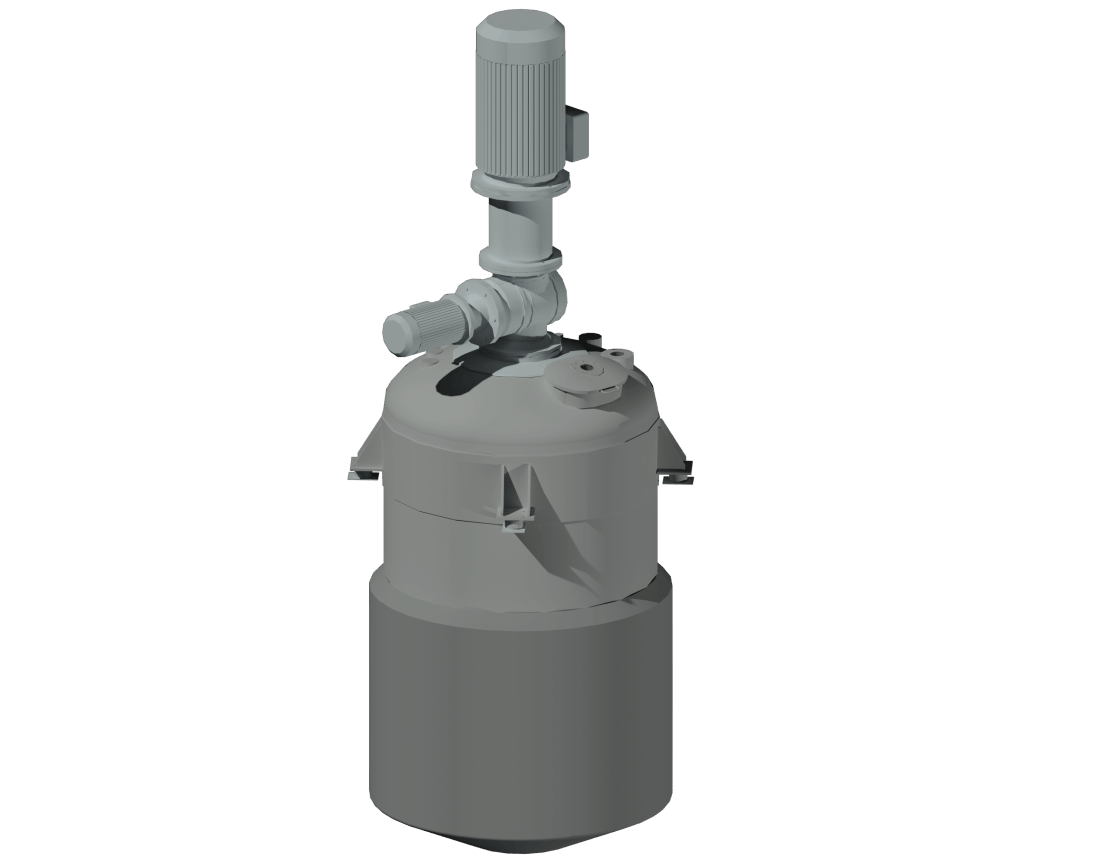

disperNOX

Mixing & dispersing for basic painting

DESCRIPTION

The DISPERSION tanks is the process amendment for efficient mixing of all parts of your standard or customized process of production and provides a variety of mixing procedures using different type of agitators. This system handles the various steps of the mixing mode efficiently, fast and secure.
This tanks can be produce batch from 3t up to 12t of base paint, depending on client's needs.

SPECIFICATION

Nominal production Capacity : up to 2 Baches per shift...
Capacity : 5.000 LT up to 10.000 LT
Operation : Semi - Automatic or Manual.
Material : AISI 304 or AISI 316L
Recipe Control : Wheighing Mode.
Control, Operation and Visualization : PLC S7 and TIA Portal

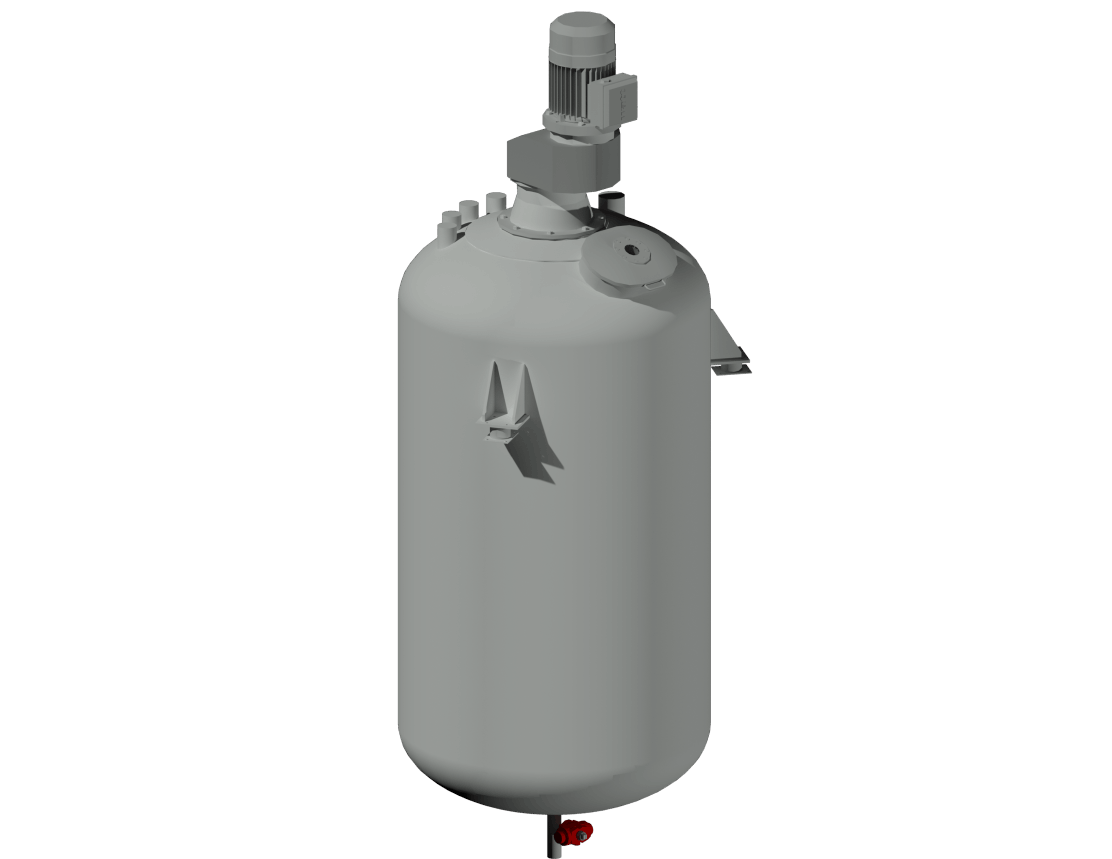

tunniNOX

Final preparation of INK or colorizing

DESCRIPTION

The Tunning tanks is the process amendment for efficient mixing of all
parts of your standard or customized process of production and provides a variety of mixing procedures using different type of agitators. This system handles the various steps of the mixing mode efficiently, fast and secure. This tanks can be produce batch from 3t up to 12t of base paint, depending on client's needs.

SPECIFICATION

Nominal production Capacity : up to 2 Baches per shift...
Capacity : 3.000 LT up to 12.000 LT
Operation : Semi - Automatic or Manual.
Material : AISI 304 or AISI 316L
Recipe Control : Wheighing Mode.
Control, Operation and Visualization : PLC S7 and TIA Portal

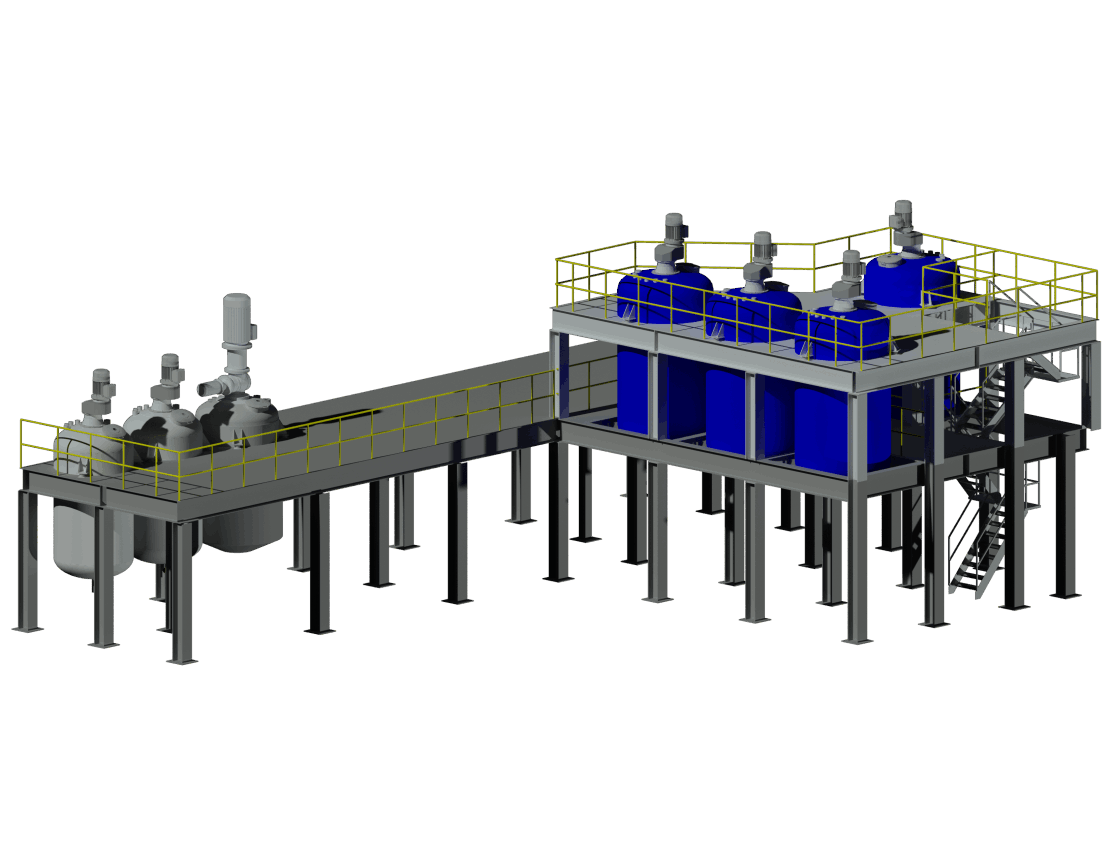

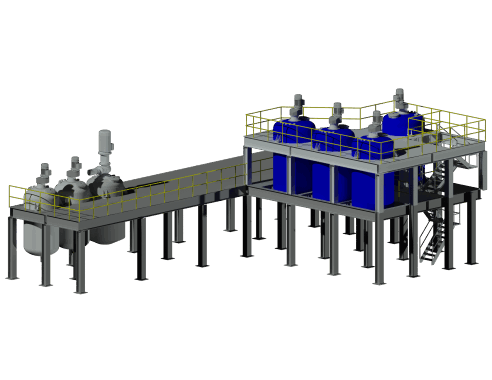

plateNOX

Plateforms for implementation of the Equipments.

DESCRIPTION

This type of equipment are designed essentially for the
paint industry to support all the necessary devices.

SPECIFICATION

We perform all the design and calculate the stability and all the necessary

cleaNOX

Cleaning machines for painting industry

DESCRIPTION

Sugar storage system for buffer and dosing to dissolving systems, with ajustable speed and control. Possibility to integrate crane for speed up the feeding of the system.
construction in stainless steel AISI 304 with the possibility of AISI 316 construction, depending on the customer's demand.
Cleaning by hot water ( separate option ).

SPECIFICATION

Nominal Transport Capacity : 5,000 Kg/h – 30,000 Kg/h
Capacity : 5.000 Kg up to 20.000 Kg
Software : NOXAE standard software.
Material : AISI 304 or AISI 316L
Control, Operation and Visualization : PLC S7 and TIA Portal
